Descripción
Parámetros técnicos
Descripción:
| Calificación | H62, H63, H65, H68, H70, H85, H90, H95, etc. |
| Especificación | Grosor 0.15-3.0 mm, ancho 10-1050 mm. |
| Temperamento | O, 1/4h, 1/2h, h, eh, sh |
| Finalizar | Doblar, soldar, decoilarse, cortar, golpear |

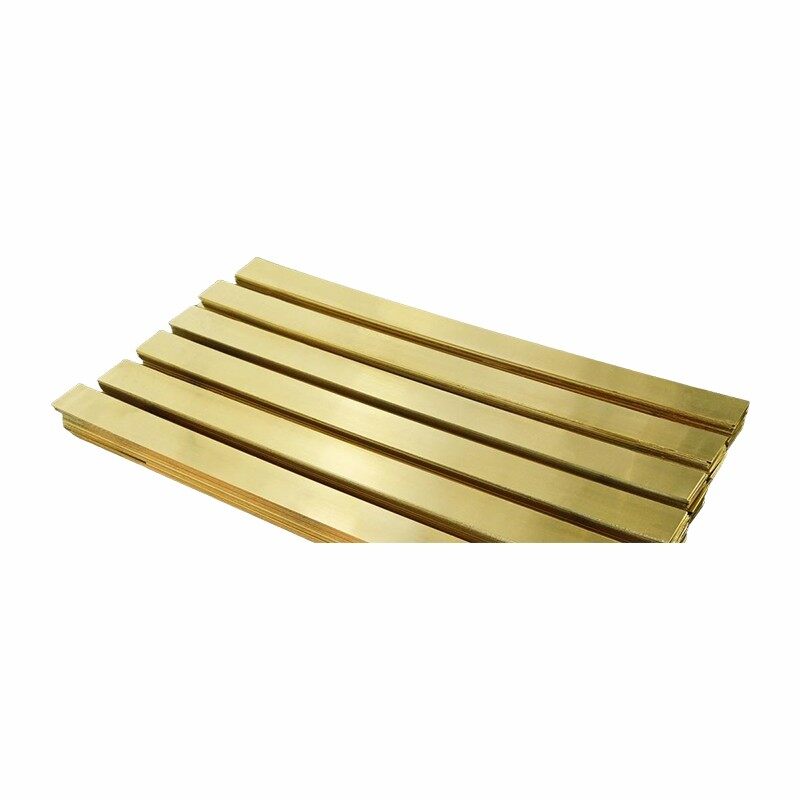

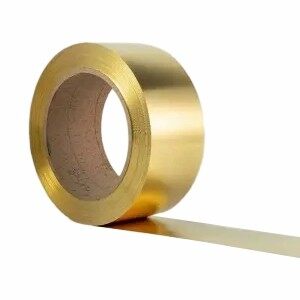

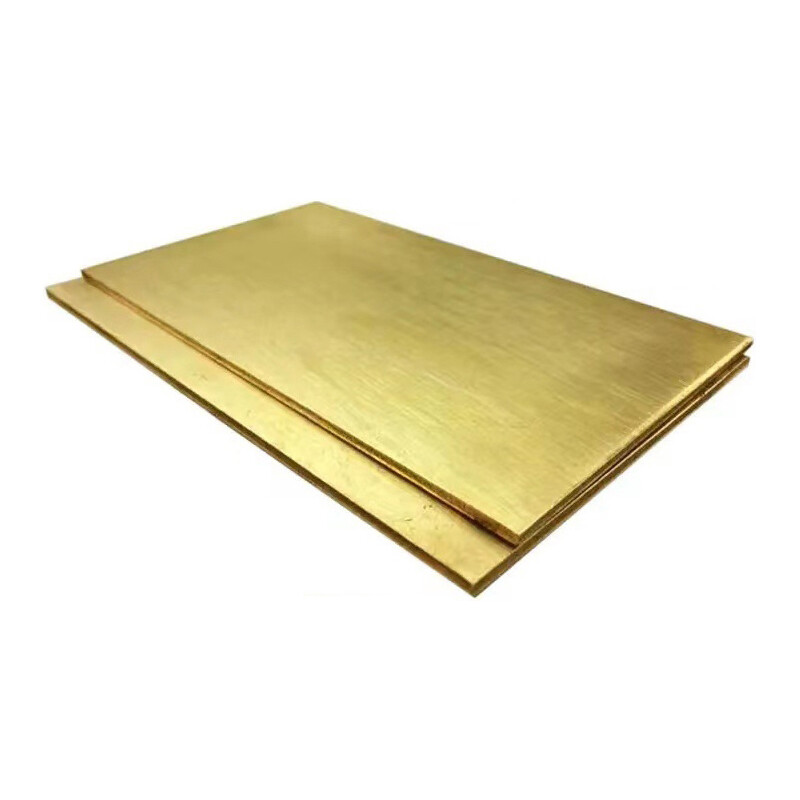

Detalles del producto:
El latón es una aleación compuesta de cobre y zinc. La placa de latón se usa ampliamente debido a sus excelentes propiedades mecánicas, propiedades físicas, alta conductividad eléctrica y térmica y resistencia a la corrisión. Se aplican en componentes de equipos electrónicos y de telecomunicaciones (como conectores), decoración de interiores, accesorios de ropa y materiales eléctricos para generadores de fabricación, barras colectivas, cables, aparejos, transformadores, etc.
Propiedades mecánicas
| Grado de aleación | Temperamento | Resistencia a la tracción (N/mm²) | Alargamiento % | Dureza | ||||||||||||||
| H62 | C2800 | C28000 | Cuzn40 | M | O | M02 | R340/H085 | Mayor o igual a 290 | Mayor o igual a 325 | 275-380 | 340-420 | Mayor o igual a 35 | Mayor o igual a 35 | Mayor o igual a 33 | Menos de o igual a 95 | 45-65 | 85-115 | |
| Y2 | 1/4H | H02 | R400/H110 | 350-470 | 355-440 | 400-485 | 400-480 | Mayor o igual a 20 | Mayor o igual a 20 | Mayor o igual a 15 | 90-130 | 85-145 | 50-70 | 110-140 | ||||
| 1/2H | H03 | 415-490 | 415-490 | 415-515 | Mayor o igual a 15 | 105-160 | 52-78 | |||||||||||
| Y | H | H04 | R470/H140 | Mayor o igual a 585 | Mayor o igual a 470 | 485-585 | Mayor o igual a 470 | Mayor o igual a 10 | Mayor o igual a 6 | 125-165 | Mayor o igual a 130 | 55-80 | Mayor o igual a 140 | |||||
| T | H06 | 565-655 | Mayor o igual a 2.5 | Mayor o igual a 155 | 60-85 | |||||||||||||
| H63 | C2720 | C27200 | Cuzn37 | M | O | M02 | R300/H055 | Mayor o igual a 290 | Mayor o igual a 275 | 285-350 | 300-370 | Mayor o igual a 35 | Mayor o igual a 40 | Mayor o igual a 38 | Menos de o igual a 95 | 55-95 | ||
| Y2 | 1/4H | H02 | R350/H095 | 350-470 | 325-410 | 385-455 | 350-440 | Mayor o igual a 20 | Mayor o igual a 35 | Mayor o igual a 19 | 90-130 | 85-145 | 54-67 | 95-125 | ||||
| 1/2H | H03 | R410/H120 | 355-440 | 425-495 | 410-490 | Mayor o igual a 28 | Mayor o igual a 8 | 64-70 | 120-155 | |||||||||
| Y | H | H04 | R480/H150 | 410-630 | Mayor o igual a 410 | 485-550 | 480-560 | Mayor o igual a 10 | Mayor o igual a 3 | 125-165 | Mayor o igual a 105 | 67-72 | 150-180 | |||||
| T | H06 | R550/H170 | Mayor o igual a 585 | 560-625 | Mayor o igual a 550 | Mayor o igual a 2.5 | Mayor o igual a 155 | 71-75 | Mayor o igual a 170 | |||||||||
| H65 | C2700 | C27000 | Cuzn36 | M | O | R300/H055 | Mayor o igual a 290 | Mayor o igual a 275 | 300-370 | Mayor o igual a 40 | Mayor o igual a 40 | Mayor o igual a 38 | Menos de o igual a 90 | 55-95 | ||||
| Y4 | 1/4H | H01 | R350/H095 | 325-410 | 325-410 | 340-405 | 350-440 | Mayor o igual a 35 | Mayor o igual a 35 | Mayor o igual a 19 | 85-115 | 75-125 | 43-57 | 95-125 | ||||
| Y2 | 1/2H | H02 | R410/H120 | 355-460 | 355-440 | 380-450 | 410-490 | Mayor o igual a 25 | Mayor o igual a 28 | Mayor o igual a 8 | 100-130 | 85-145 | 54-64 | 120-155 | ||||
| Y | H | H04 | R480/H150 | 410-540 | 410-540 | 470-540 | 480-560 | Mayor o igual a 13 | Mayor o igual a 3 | 120-160 | 105-175 | 68-72 | 150-180 | |||||
| T | Eh | H06 | R550/H170 | 520-620 | 520-620 | 545-615 | Mayor o igual a 550 | Mayor o igual a 4 | 150-190 | 145-195 | 73-75 | Mayor o igual a 170 | ||||||
| Ty | Mierda | H08 | Mayor o igual a 585 | 570-670 | 595-655 | Mayor o igual a 180 | 165-215 | 75-77 | ||||||||||
| H68 | C2620 | C26200 | Cuzn33 | M | / | / | R280/H055 | Mayor o igual a 290 | / | / | 280-380 | Mayor o igual a 40 | / | Mayor o igual a 40 | Menos de o igual a 90 | / | / | 50-90 |
| Y4 | R350/H095 | 325-410 | 350-430 | Mayor o igual a 35 | Mayor o igual a 23 | 85-115 | 90-125 | |||||||||||
| Y2 | 355-460 | Mayor o igual a 25 | 100-130 | |||||||||||||||
| Y | R420/H125 | 410-540 | 420-500 | Mayor o igual a 13 | Mayor o igual a 6 | 120-160 | 125-155 | |||||||||||
| T | R500/H155 | 520-620 | Mayor o igual a 500 | Mayor o igual a 4 | 150-190 | Mayor o igual a 155 | ||||||||||||
| Ty | Mayor o igual a 570 | Mayor o igual a 180 | ||||||||||||||||
| H70 | C2600 | C26000 | Cuzn30 | M | O | M02 | R270/H055 | Mayor o igual a 290 | 285-350 | 270-350 | Mayor o igual a 40 | Mayor o igual a 40 | Menos de o igual a 90 | 55-90 | ||||
| Y4 | 1/4H | H01 | R350/H095 | 325-410 | 340-405 | 350-430 | Mayor o igual a 35 | Mayor o igual a 21 | 85-115 | 43-57 | 95-125 | |||||||
| Y2 | 1/2H | H02 | R410/H120 | 355-460 | 355-440 | 395-460 | 410-490 | Mayor o igual a 25 | Mayor o igual a 28 | Mayor o igual a 9 | 100-130 | 85-145 | 56-66 | 120-155 | ||||
| Y | H | H04 | R480/H150 | 410-540 | 410-540 | 490-560 | Mayor o igual a 480 | Mayor o igual a 13 | 120-160 | 105-175 | 70-73 | Mayor o igual a 150 | ||||||
| T | Eh | H06 | 520-620 | 520-620 | 570-635 | Mayor o igual a 4 | 150-190 | 145-195 | 74-76 | |||||||||
| Ty | Mierda | H08 | Mayor o igual a 570 | 570-670 | 625-690 | Mayor o igual a 180 | 165-215 | 76-78 | ||||||||||
| H85 | C2300 | C23000 | Cuzn15 | M | O | M20 | R260/H055 | Mayor o igual a 260 | Mayor o igual a 260 | 255-325 | 260-310 | Mayor o igual a 40 | Mayor o igual a 40 | Mayor o igual a 36 | Menos de o igual a 85 | 55-85 | ||
| Y2 | 1/2H | H01 | R300/H085 | 305-380 | 305-380 | 305-370 | 300-370 | Mayor o igual a 15 | Mayor o igual a 23 | Mayor o igual a 14 | 80-115 | 42-57 | 85-115 | |||||
| Y | H | H02 | R350/H105 | Mayor o igual a 350 | Mayor o igual a 355 | 350-420 | 350-370 | Mayor o igual a 4 | Mayor o igual a 105 | 56-64 | 105-135 | |||||||
| R410/H125 | Mayor o igual a 410 | Mayor o igual a 125 | ||||||||||||||||
| H90 | C2200 | C22000 | Cuzn10 | M | O | M20 | R240/H050 | Mayor o igual a 245 | Mayor o igual a 225 | 230-295 | 240-290 | Mayor o igual a 35 | Mayor o igual a 35 | Mayor o igual a 36 | 50-80 | |||
| Y2 | 1/2H | H02 | R280/H080 | 330-440 | 285-365 | 325-395 | 280-360 | Mayor o igual a 5 | Mayor o igual a 20 | Mayor o igual a 13 | 50-59 | 80-110 | ||||||
| Y | H | H04 | R350/H110 | Mayor o igual a 390 | Mayor o igual a 350 | 395-455 | Mayor o igual a 350 | Mayor o igual a 3 | Mayor o igual a 4 | Mayor o igual a 140 | 60-65 | Mayor o igual a 110 | ||||||
| H95 | C2100 | C21000 | Cuzn5 | M | O | M20 | R230/H045 | Mayor o igual a 215 | Mayor o igual a 205 | 220-290 | 230-280 | Mayor o igual a 30 | Mayor o igual a 33 | Mayor o igual a 36 | 45-75 | |||
| 1/4H | H01 | R270/H075 | 225-305 | 255-305 | 270-350 | Mayor o igual a 23 | Mayor o igual a 12 | 34-51 | 75-110 | |||||||||
| Y | H | H04 | R340/H110 | Mayor o igual a 320 | Mayor o igual a 305 | 345-405 | Mayor o igual a 340 | Mayor o igual a 3 | Mayor o igual a 4 | 57-62 | Mayor o igual a 110 | |||||||
Aplicaciones industriales:
Nuestra placa de latón tiene buena ductilidad, rendimiento de dibujo profundo, soldadura, platabilidad y buena resistencia de corrisión. Se puede usar ampliamente en electrodomésticos electrónicos, LED, decoración del hogar, componentes de disipación de calor, hardware diario, etc.
